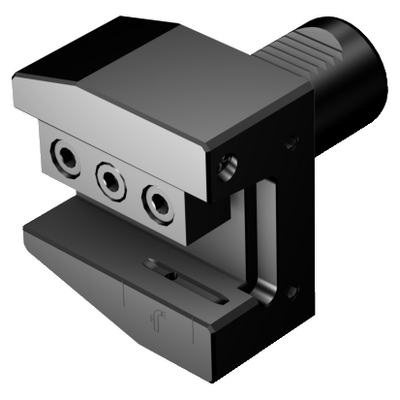

Generic representation
Made-to-order
Package quantity: 1
ISO: ASHA-L-VDI50-25-HP
Material Id: 6472358
EAN: 26472358
ANSI: ASHA-L-VDI50-25-HP

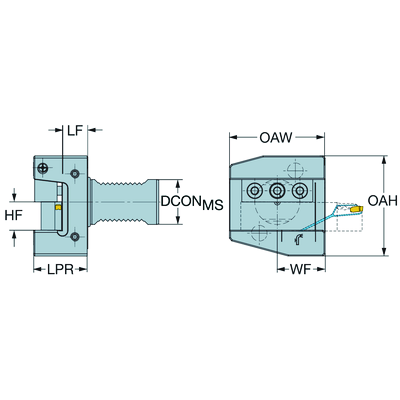

Technical illustrations
Generic representation
Product data
Connection - machine side(ADINTMS)
VDI machine interface -size 50
Connection - workpiece side
(ADINTWS)
Rectangular shank -metric: 25 x 25
Maximum overhang
(OHX)
23 mm
Hand
(HAND)
Left
Coolant entry style(CNSC)
decentral over flange
Coolant exit style(CXSC)
decentral exit with nozzles, adjustable
Coolant pressure(CP)
80 bar
Connection diameter machine side(DCONMS)
50 mm
Protruding length(LPR)
48 mm
Functional length(LF_1)
23 mm
Functional width(WF_1)
50 mm
Functional height(HF_1)
25 mm
Overall length(OAL)
123 mm
Overall height(OAH)
110 mm
Overall width(OAW)
100 mm
Torque(TQ)
25 Nm
Body material(BMC)
Steel
Weight of item(WT)
4.421 kg
Release date(ValFrom20)
2/25/14
Release pack id(RELEASEPACK)
14.1
