Specific representation
Made-to-order
Package quantity: 1
ISO: C10-PRDCL-35134-32C
Material Id: 6639538
EAN: 26639538
ANSI: C10-PRDCL-35134-32C
Technical illustrations

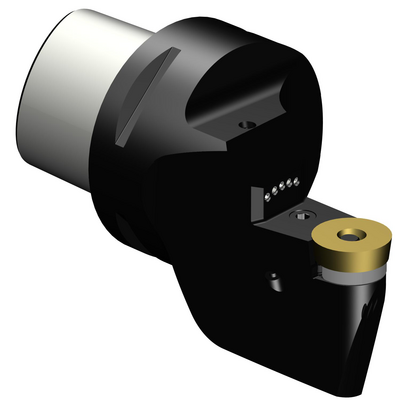

Generic representation
Product data
Clamping type code(MTP)
clamp with pin through hole
Insert type(CUTINT_MASTER)
metric RCMX 320900
Connection - machine side(ADINTMS)
Coromant Capto (bolt and segment clamping) -size C10

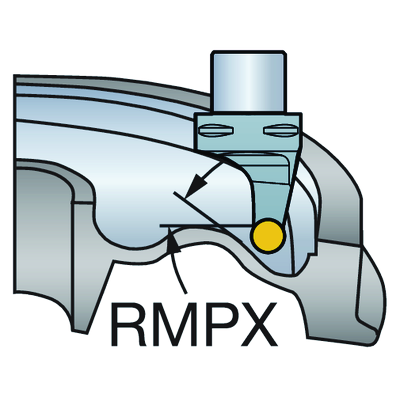

Maximum ramping angle
(RMPX)
80 °

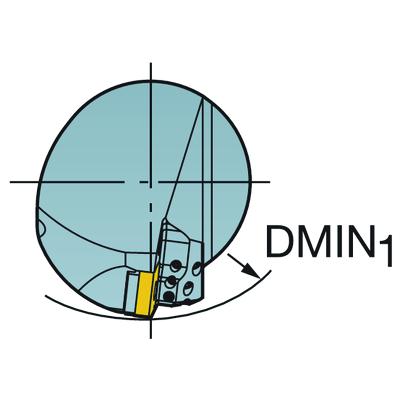

Minimum bore diameter
(DMIN_1)
600 mm
Workpiece side body angle
(BAWS)
0 °
Machine side body angle(BAMS)
0 °
Maximum overhang
(OHX)
134 mm
Hand
(HAND)
Left
Coolant exit style(CXSC)
Axially concentric or off-center with nozzle, adjustable
Coolant entry style(CNSC)
axial concentric and radial entry
Coolant pressure(CP)
150 bar
Connection diameter machine side(DCONMS)
100 mm

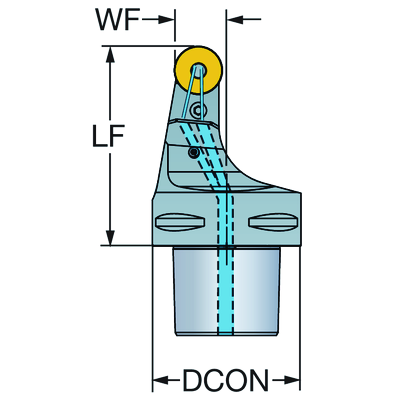

Functional length(LF)
134 mm
Functional width(WF)
35 mm
Functional height(HF)
0 mm
Orthogonal rake angle(GAMO)
0 °
Inclination angle(LAMS)
0 °
Torque(TQ)
17 Nm
Body material(BMC)
Steel
Weight of item(WT)
5.38 kg
Master insert identification(MIID)
RCMX 32 09 00
Overall length(OAL)
194 mm
Insert seat - metric(SSC_M)
32
Insert seat size code imperial view(SSC_N)
1.260
Release date(ValFrom20)
2/21/15
Release pack id(RELEASEPACK)
15.1
