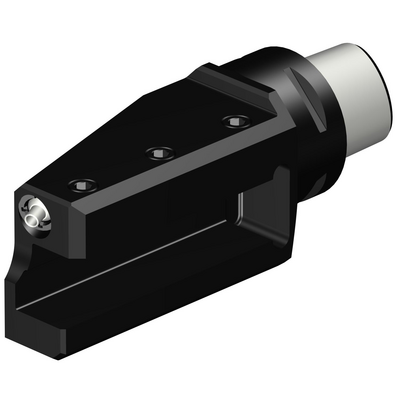

Specific representation
Available
Package quantity: 1
ISO: C4-ASHR-23104-16
Material Id: 6078852
EAN: 26078852
ANSI: C4-ASHR-23104-16
Technical illustrations
Generic representation
Product data
Connection - machine side(ADINTMS)
Coromant Capto (bolt and segment clamping) -size C4
Connection - workpiece side
(ADINTWS)
Rectangular shank -metric: 16 x 16
Maximum overhang
(OHX)
104 mm
Hand
(HAND)
Right
Coolant entry style(CNSC)
axial concentric and radial entry
Coolant exit style(CXSC)
axial inclined focused exit with nozzle
Coolant pressure(CP)
80 bar
Connection diameter machine side(DCONMS)
40 mm
Functional length(LF_1)
104 mm
Functional width(WF_1)
7 mm
Functional height(HF_1)
16 mm
Overall length(OAL)
128 mm
Overall height(OAH)
50.5 mm
Overall width(OAW)
43.5 mm
Radial body height(RADH)
30 mm
Radial body width(RADW)
23 mm
Maximum tool changer interference diameter(DIX)
65 mm
Body material(BMC)
Steel
Weight of item(WT)
0.998 kg
Release date(ValFrom20)
9/20/11
Release pack id(RELEASEPACK)
11.2
