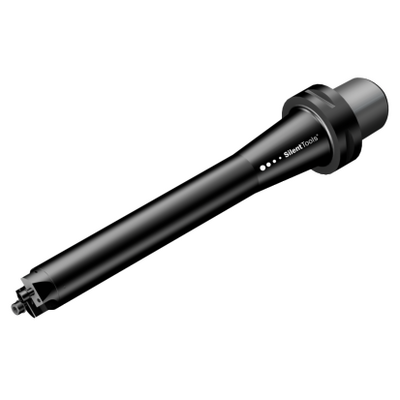

Generic representation
Out of stock
Package quantity: 1
ISO: C6-BR20D-F-380
Material Id: 7216945
EAN: 7323221655846
ANSI: C6-BR20D-F-380

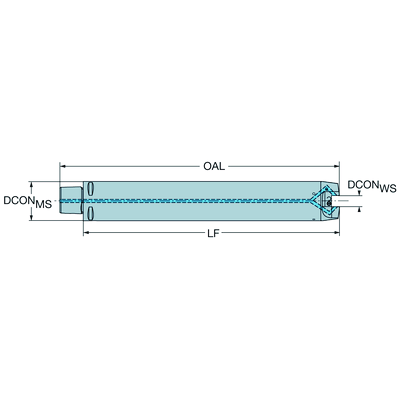

Technical illustrations
Generic representation
Product data
Minimum cutting diameter(DCN)
70 mm
Maximum cutting diameter(DCX)
90 mm
Connection - machine side(ADINTMS)
Coromant Capto (bolt and segment clamping) -size C6
Adaptive interface workpiece direction(ADINTWS_1)
BR20 slide -size F (side A)
Adaptive interface workpiece direction(ADINTWS_2)
BR20 slide -size F (side B)
Silent Tools™(DPC)
Yes
Coolant entry style(CNSC)
axial concentric and radial entry
Coolant exit style code(CXSC_1)
axial concentric exit
Coolant exit style code(CXSC_2)
axial concentric exit
Coolant pressure(CP)
70 bar
Standard number(STDNO)
ISO26623-1
Connection diameter machine side(DCONMS)
63 mm
Functional length(LF_1)
380 mm
Functional length(LF_2)
379.7 mm
Functional width(WF_1)
8 mm
Functional width(WF_2)
8 mm
Body length(LB_1)
380 mm
Body diameter(BD_1)
63 mm
Body half taper angle(BHTA_1)
0 °
Maximum allowed body temperature(TBX)
100 C
Torque(TQ)
75 Nm
Body material(BMC)
Steel
Weight of item(WT)
9.67 kg
Overall length(OAL)
418 mm
Release date(ValFrom20)
2/19/17
Release pack id(RELEASEPACK)
17.1
