Generic representation
Available within a week
Package quantity: 1
ISO: HA10-SH08Q-S-085
Material Id: 7081634
EAN: 7323221191733
ANSI: HA10-SH08Q-S-085

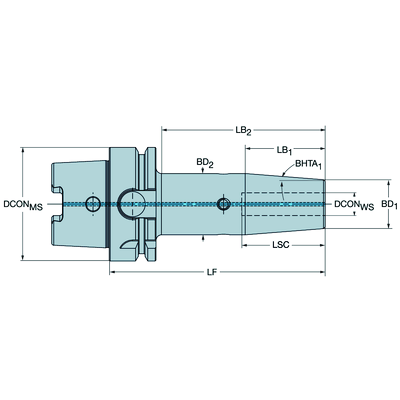

Technical illustrations
Generic representation
Product data
Connection - machine side(ADINTMS)
HSK -A -size 100
Connection - workpiece side
(ADINTWS)
Cylindrical clamping (shrink fit) -metric: 8
Coolant entry style(CNSC)
axial concentric entry
Coolant exit style(CXSC)
axial concentric exit
Coolant pressure(CP)
10 bar
Data chip pocket
(DCP)
Yes
Data chip pocket size(DCPS)
Dia.=10 mm/Height=4,5 mm
Connection diameter machine side(DCONMS)
100 mm
Functional diameter(DFC)
75.013 mm
Standard number(STDNO)
ISO12164-1
Standard letter(STDLET)
A
Connection diameter workpiece side(DCONWS)
8 mm
Kappa (z-axis rot)(KAP)
0 °
Functional length(LF)
85 mm
Body diameter(BD_1)
21 mm
Body diameter(BD_2)
27 mm
Body diameter(BD_3)
100 mm
Body length(LB_1)
38.14 mm
Body length(LB_2)
56 mm
Body length(LB_3)
85 mm
Body half taper angle(BHTA_1)
4.5 °
Body half taper angle(BHTA_2)
0 °
Body half taper angle(BHTA_3)
0 °
Rotational speed maximum(RPMX)
12,500 1/min
Body material(BMC)
Steel
Balancing method code(BLMC)
Balancing by design
Weight of item(WT)
2.182 kg
Overall length(OAL)
135 mm
Release date(ValFrom20)
2/19/17
Release pack id(RELEASEPACK)
17.1
