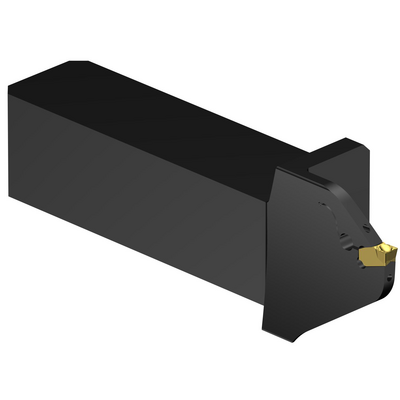

Specific representation
Available within a week
Package quantity: 1
ISO: QFU-LFH26C2525-150B
Material Id: 7192444
EAN: 7323221534059
ANSI: QFU-LFH26C2525-150B
Technical illustrations
Generic representation
Product data
Cutting depth maximum
(CDX)
1.0236 inch
Axial groove inside diameter minimum(DAXIN)
5.9055 inch
Maximum axial groove outside diameter(DAXX)
12.2047 inch
Axial groove support direction(AXGSUP)
2
Clamping type code(MTP)
clamp on top of insert
Insert type(CUTINT_MASTER)
CoroCut QFU -size H (QFU-H-0400-03-TF)
Insert seat - metric(SSC_M)
QFU-H
Connection - machine side(ADINTMS)
Rectangular shank -metric: 25 x 25
Workpiece side body angle
(BAWS)
0 °
Minimum overhang(OHN)
1.4016 inch
Maximum overhang
(OHX)
1.4016 inch
Hand
(HAND)
Left
Coolant entry style(CNSC)
axial concentric and radial entry
Coolant exit style(CXSC)
axial inclined exit
Coolant entry thread size(CNT)
G 1/8-28
Coolant pressure(CP)
2,175.5661 lbf/in2
Shank width(B)
0.9843 inch
Shank height(H)
0.9843 inch
Functional length(LF)
4.7087 inch
Functional width(WF)
1.0039 inch
Functional height(HF)
0.9843 inch
Overall length(OAL)
4.7087 inch
Weight of item(WT)
1.0737 lb
Insert seat size code imperial view(SSC_N)
QFU-H
Release date(ValFrom20)
2/22/18
Release pack id(RELEASEPACK)
18.1
