QS-QD-RFH1600C16D
QS-QD-RFH1600C16D
CoroCut® QD, QS™ shank tool for parting and groovingchevron_right

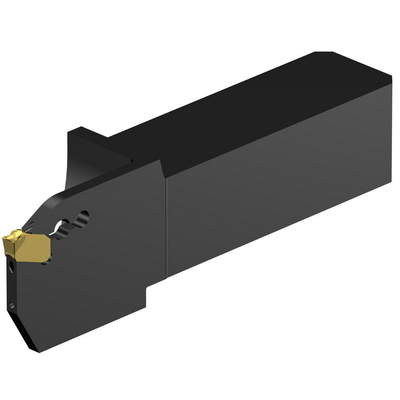

Specific representation
Available
Package quantity: 1
ISO: QS-QD-RFH1600C16D
Material Id: 6427683
EAN: 26427683
ANSI: QS-QD-RFH1600C16D

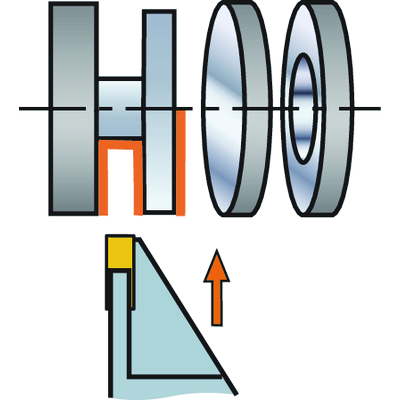

Technical illustrations
Generic representation
Product data
Cutting depth maximum
(CDX)
40.64 mm
Work piece parting diameter maximum(CUTDIA)
81.28 mm
Clamping type code(MTP)
clamp on top of insert
Insert type(CUTINT_MASTER)
CoroCut QD -size H (QD-NH-0400-0002-CM)
Insert seat - metric(SSC_M)
H
Connection - machine side(ADINTMS)
Rectangular shank -inch: 1 x 1
Workpiece side body angle
(BAWS)
0 °
Minimum overhang(OHN)
42.24 mm
Maximum overhang
(OHX)
67.64 mm
Hand
(HAND)
Right
Coolant entry style(CNSC)
axial concentric and radial entry
Coolant exit style(CXSC)
axial concentric exit
Coolant entry thread size(CNT)
G 1/8-28
Coolant pressure(CP)
150 bar
Shank width(B)
25.4 mm
Shank height(H)
25.4 mm
Functional length(LF)
126.2 mm
Functional width(WF)
25.9 mm
Functional height(HF)
25.4 mm
Overall length(OAL)
126.2 mm
Weight of item(WT)
0.449 kg
Insert seat size code imperial view(SSC_N)
H
Release date(ValFrom20)
2/25/14
Release pack id(RELEASEPACK)
14.1
