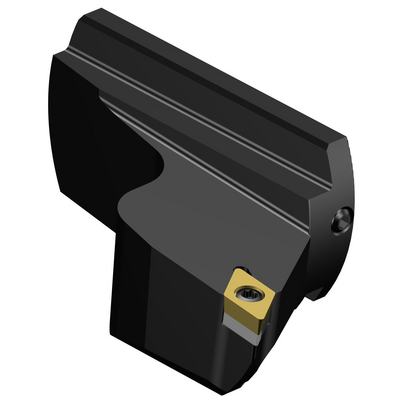

Specific representation
Available within a week
Package quantity: 1
ISO: 570-SDUCR-80-11
Material Id: 5764375
EAN: 12004204
ANSI: 570-SDUCR-80-11
Technical illustrations
Generic representation
Product data
Tool cutting edge angle(KAPR_1)
93 °
Lead angle(PSIR)
-3 °
Clamping type code(MTP)
clamp with screw through hole
Insert type(CUTINT_MASTER)
DCMT 11T308
Connection - machine side(ADINTMS)
SL head (quick change) -size 80
Maximum ramping angle
(RMPX)
27 °
Minimum bore diameter
(DMIN_1)
100 mm
Workpiece side body angle
(BAWS)
0 °
Machine side body angle(BAMS)
0 °
Maximum overhang
(OHX)
45.7 mm
Hand
(HAND)
Right
Coolant exit style(CXSC)
no coolant exit
Coolant entry style(CNSC)
without coolant entry
Connection diameter machine side(DCONMS)
80 mm
Shank height(H)
37.5 mm
Functional length(LF)
45.7 mm
Functional width(WF)
57 mm
Functional height(HF)
0 mm
Orthogonal rake angle(GAMO)
0 °
Inclination angle(LAMS)
-4 °
Torque(TQ)
3 Nm
Body material(BMC)
Steel
Weight of item(WT)
0.5204 kg
Master insert identification(MIID)
DCMT 11 T3 08
Overall length(OAL)
45.7 mm
Insert seat - metric(SSC_M)
11
Insert seat size code imperial view(SSC_N)
3/8
Release date(ValFrom20)
1/31/05
Release pack id(RELEASEPACK)
05.1
