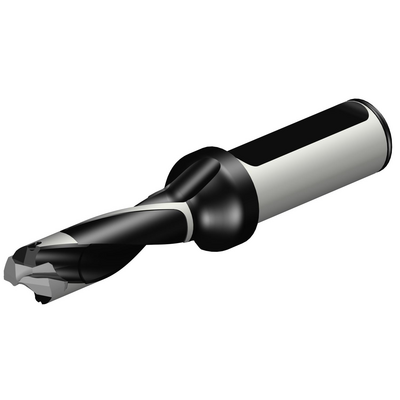

Specific representation
Available
Package quantity: 1
ISO: 870-1500-15LX075-3
Material Id: 6035686
EAN: 26035686
ANSI: 870-1500-15LX075-3
Technical illustrations
Generic representation
Product data
Minimum cutting diameter(DCN)
15 mm
Maximum cutting diameter(DCX)
15.99 mm
Clamping type code(MTP)
clamp on top of insert
Insert type(CUTINT_MASTER)
CoroDrill 870-1590-15-PM
Cutting item count(CICT)
1
Torque(TQ)
0.9 Nm
Achievable hole tolerance(TCHA)
H9
Usable length
(LU)
50.42 mm
Usable length diameter ratio
(ULDR)
3.1711
Face effective cutt edge count(ZEFF)
2
Connection - machine side(ADINTMS)
Cylindrical shank (ISO9766 drill shank with flange) -inch: 3/4
Coolant entry style(CNSC)
axial concentric entry
Coolant pressure(CP)
10 bar
Connection diameter machine side(DCONMS)
19.05 mm
Point length(PL)
2.44 mm
Overall length(OAL)
119 mm
Functional length(LF)
66.56 mm
Body length(LB)
53 mm
Rotational speed maximum(RPMX)
33,000 1/min
Weight of item(WT)
0.178 kg
Insert seat - metric(SSC_M)
15
Insert seat size code imperial view(SSC_N)
15
Release date(ValFrom20)
2/25/12
Release pack id(RELEASEPACK)
12.1
